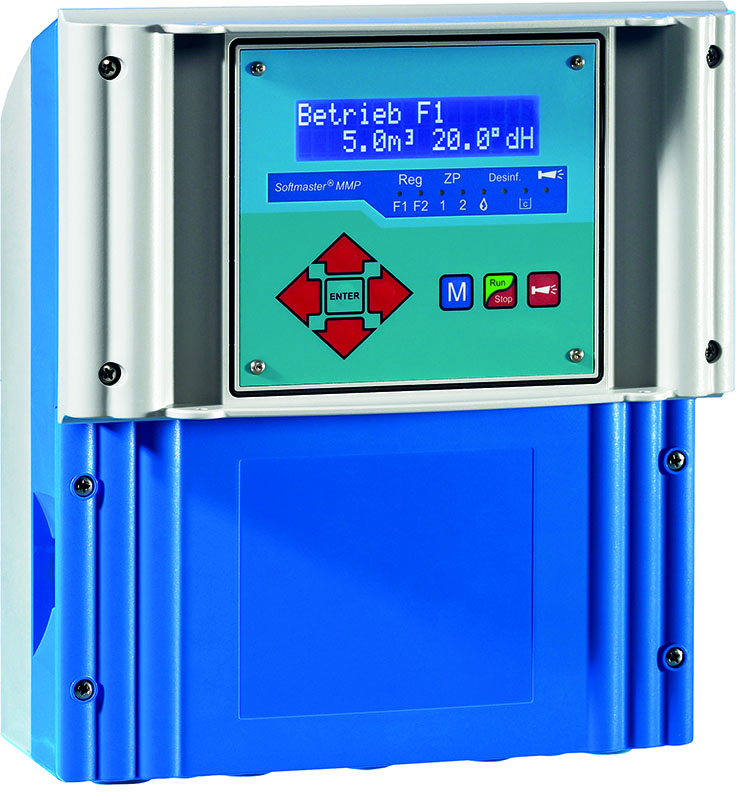

Controlling device Softmaster® MMP 2 for fully automated regeneration of water softening plants; fitting for central control valves or pilot distributor, controlled via electrical toggle or pulse switch and for pilot valves to pilot regeneration valves; for 1-filter, 2-filter–alternate switching; quantity/time/quality controlled activation of regeneration.



Applications

  • Boiler houses
  • Cooling towers
  • Industry
  • and so on







Technical Data

  • Mains connection: 230–240 VAC, 115 VAC, 24 VAC +/-10% all 50–60Hz
  • Power consumption: max. 9 VA
  • Protection type: I
  • Protection class: IP 65
  • Dimensions (W x H x D): 270 x 295 x 130 mm / 10.6″ x 11.6″ x 5.1″
  • Control panel cut-out: 262 x 146 mm, +1 mm / / 10.3″ x 5.7″
  • Installation depth: ca. 90 mm / 3.5″
  • Front frame dimensions: 270 x 155 mm / 10.6″ x 6.1″
  • Weight: approx. 1,3 kg / 2.9 lbs
  • Potential-free relay outputs for filters, 2 regeneration valves, 2 additional programmes and error messages
  • output for metering pulse
  • 12 V power supply for water turbine
  • Inputs for 2 water meters, 12 V power supply for water turbine, external regeneration start/stop, brine level – empty/full and error message TESTOMAT
  • menu navigation in German, English, French, Italian, Dutch, Polish
  • Optional:
    RS232 interface/ current interface 0/4-20 mA
    I/O card 0/4-20 mA (current interface Softmaster)
  • Remote maintenance and remote monitoring via the telephone network or mobile network via RS 232 and modem, ISDN-TA or GSM device (optional)
